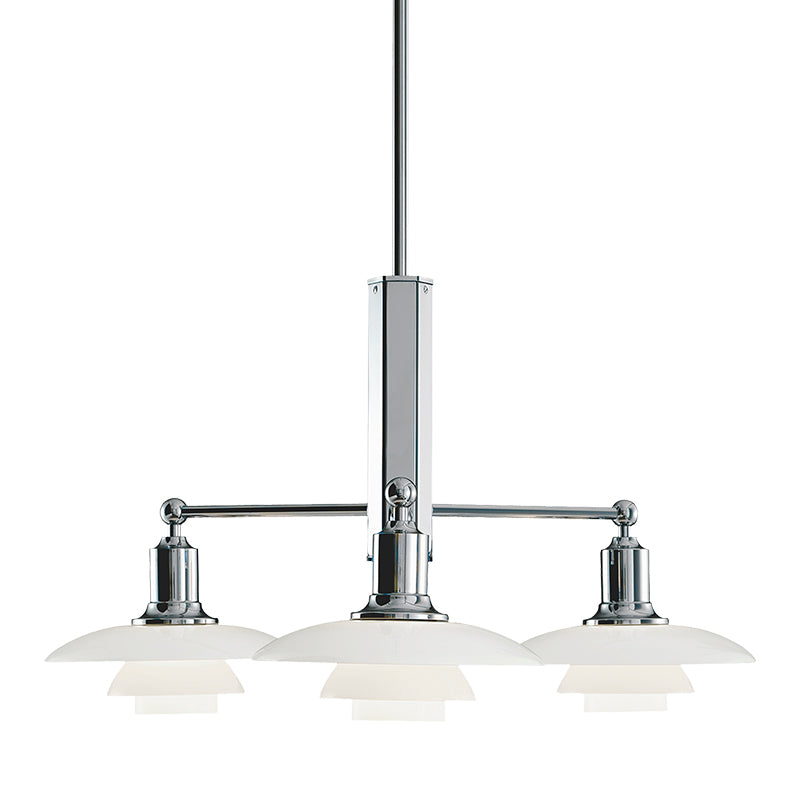

Louis Poulsen PH 2/1 Stem Fitting Pendant Light

Manufacturer: Louis Poulsen

Designer: Poul Henningsen

The fixture provides a soft, harmonious and comfortable light distribution with its mouth-blown three-layer white opal glass that primarily directs the light downwards. Poul Henningsen designed it based on his celebrated three-shade system, which he created in 1925 to shape excellent non-glare lighting.

The first lamp using the multi-shade system was made in collaboration with Louis Poulsen for the Paris exhibition that same year. The ‘Paris Lamp’ won gold.

Henningsen had a distinct scientific approach to light and continued to design numerous luminaires based on the same system. He used the logarithmic spiral as the foundation and accomplished even distribution of light with the three-shade-system, which together with a dispersed reflection through the glass made it possible to curb glare and shadow.

Each PH lamp number refers to the size of its shades. The PH2/1 Stem fitting consists of three top shades of approximately 20 cm and the lower shades are used from the 1/1 version.

The fixture is designed based on the principle of a reflective three-shade system, which directs the majority of the light downwards. The shades are made of mouth-blown opal three-layer glass, which is glossy on the top and sandblasted matt on the underside, giving a soft and diffused light distribution.

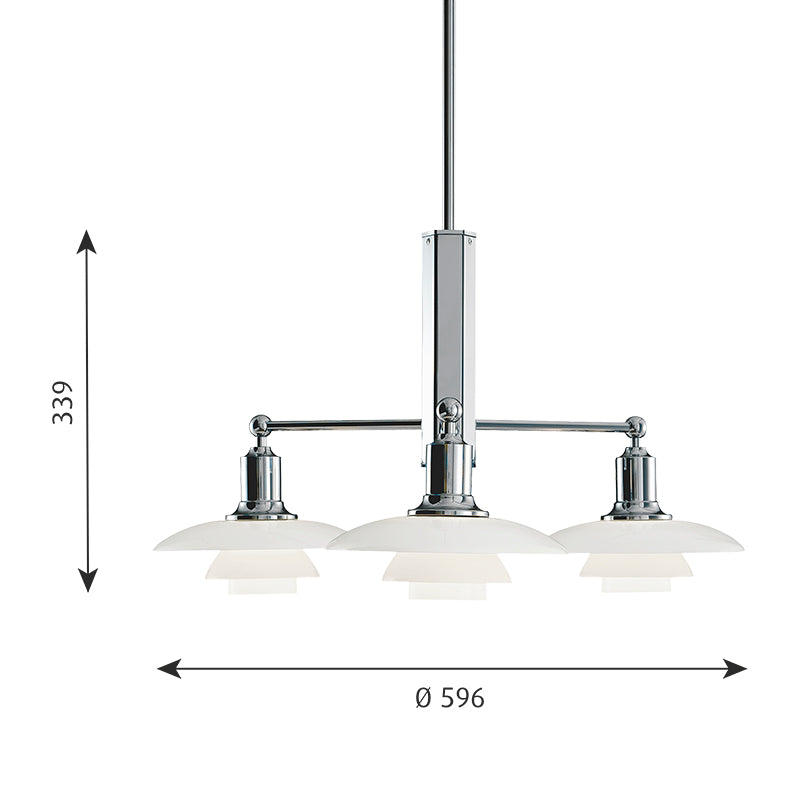

Dimensions: Diameter: 596mm x Height: 339mm

Finish: High lustre chrome plated. White opal glass.

Material: Shades: Mouth-blown white opal glass. Body: High lustre chrome plated, brass. Socket cover: High lustre chrome plated, spun aluminium.

Mounting: Suspension type: Cable 2x0,75mm². Canopy: Yes. Cable length: 3,5m.

Weight: Max. 3.5kg.

Class: Ingress protection IP20. Electric shock protection II w/o ground.
